AWD406NG
AWD406NG
Angelwing designs

AWD406NG

Regular price £4.50 £0.00 Unit price per
Shipping calculated at checkout.

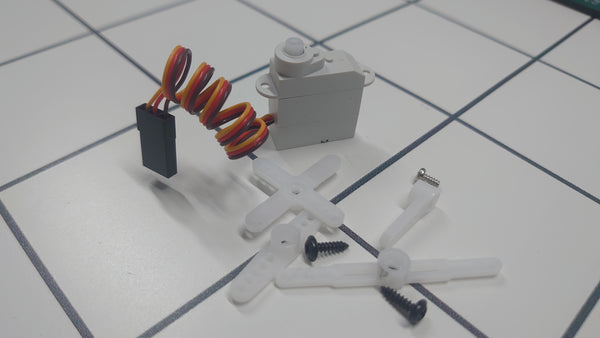

Nylon Geared 4.6g Micro Servo

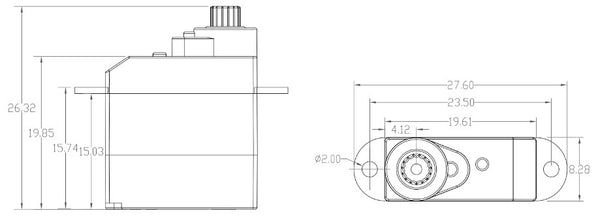

Dimensions : 19.6 x 23.7 x 8.4 mm

Weight with Lead : ~ 4.6g

Speed/Torque@ 4,8V : 0.09 sec / 60° 1Kg / cm

Speed/Torque@ 6.0V : 0.08 sec / 60° 1.5 Kg / cm

Input Voltage : 4.8V - 6V

Harness length : 200mm JR

Dead band : 5μs

Electric precision : 2,5μs
