1s Lipo to 5V Step up voltage Booster

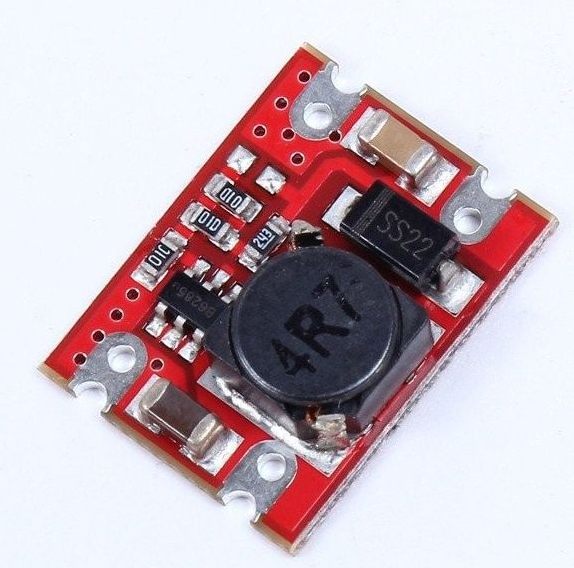

This 2A step up power supply module has a fixed output voltage of 5V with input voltages from 2V to 5V max.

This is ideal for powering DLGs and other small gliders using a 1S LiPo when the servos do not work reliably or provide acceptable performance at lower voltages. The 2A current capability is enough for a four servo 1.5m DLG.

These regulators can also be used with small 1S LiPos as backup power supplies for larger model aircraft.

Please note that the Lipo battery should not be discharged below 3.3v. The Battery voltage must be monitored , and not the output voltage from the regulator to the receiver. Most telemetry receivers allow for external voltage monitoring.
