Angelwing designs

AWD-7462MG Servo

£7.95

Shipping calculated at checkout.

Shipping to the USA will require additonal Tarrifs to be paid prior to shipping. This product is manufactured in China and the current USA - China Tarrifs have to be paid separately prior to despatch. Please contact us for more details

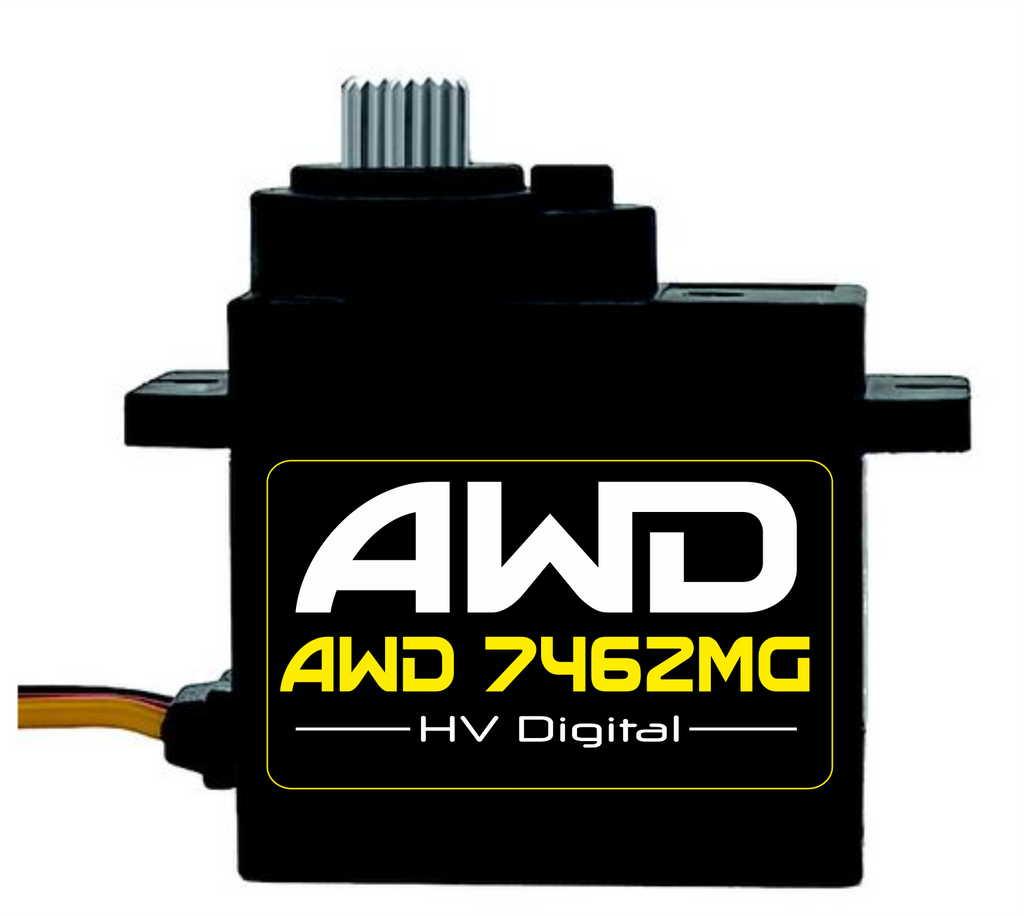

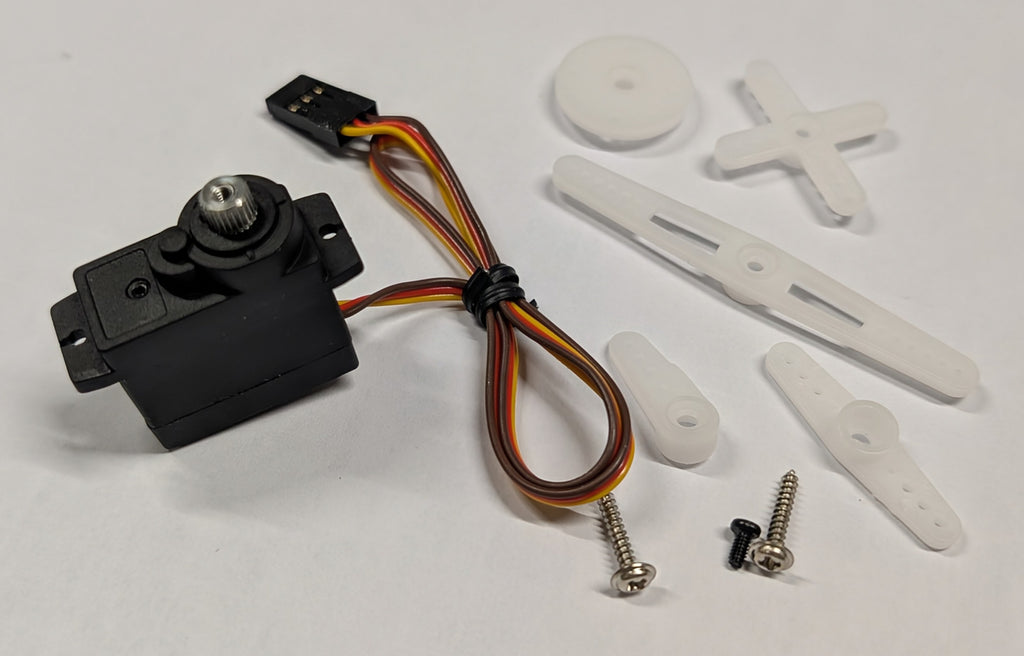

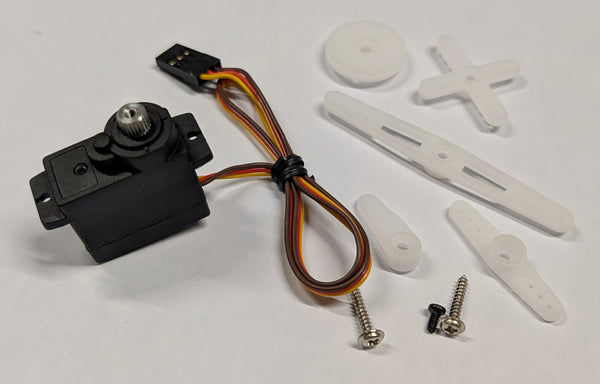

High Power 12g Class Metal Geared Micro Servo

This Coreless motor metal geared servos offers very high performance for its size and cost.
It is the perfect choice for the Blink V2 Delta

Operating Voltage	4.8v - 8.4v	2s Lipo Compatible
Stall Torque	3.8kg @ 5v 5.8kg @8.4v
No Load Current	46ma @ 5v 63ma @ 8.4v
Stall Current	1A @ 5v 1.6A @ 8.4V
Dead band	2us

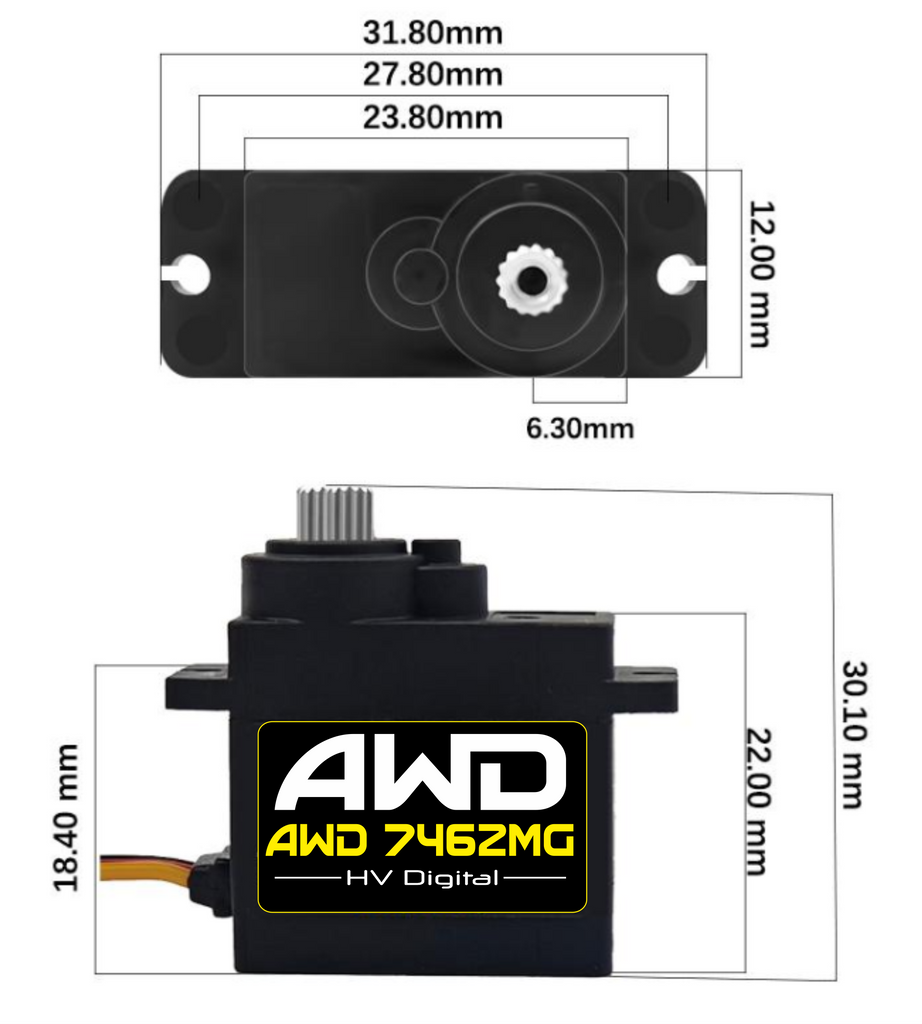

Dimensions	23.9 x 12 x 26.6mm
Weight	12.5g with Lead
