5v Wired Bec
Angelwing designs

5v Wired Bec

Regular price $8.99 $0.00 Unit price per
Shipping calculated at checkout.

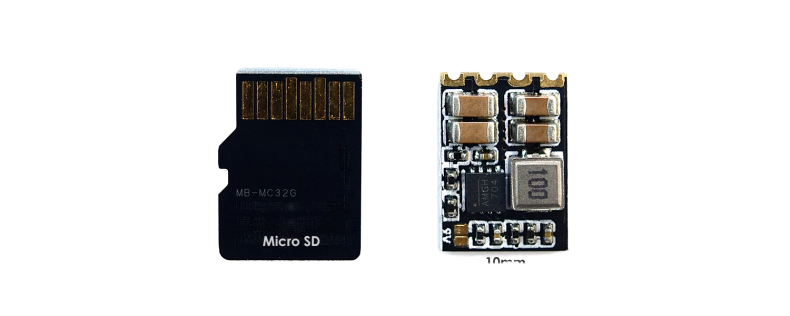

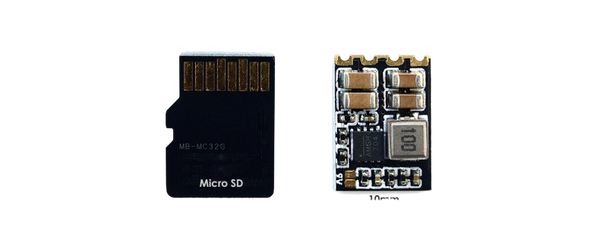

Superlight 5v BEC is perfect for our Micro Gliders and DLG.

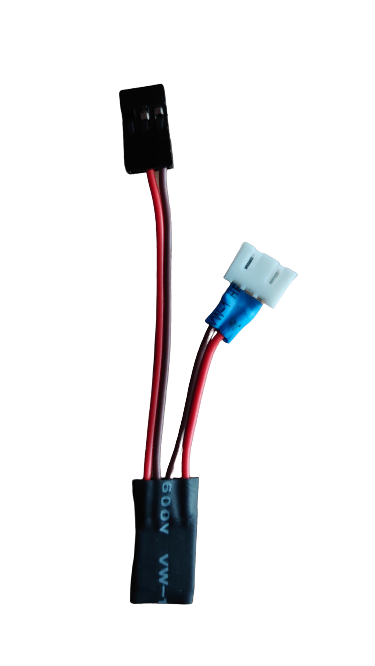

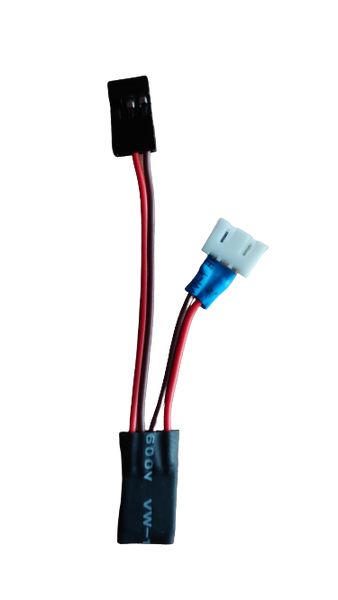

Prewired with a regular servo connector and a 2s JST-XH socket, PH2.0 Connector or no Battery connector


We recommend a 2s 180mah - 500mah for most of our micro gliders and PUG dlg.

Specifications:

- High Efficiency Synchronous Step-down regulator
- Wide 6V to 30V Operating Input Range
- Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
- VOut 5V
- VOut Load Regulation: 2%
- Standby current: <5mA
- Thermal Shutdown
- Output Short-circuit tolerant (5 seconds/minute)
