Lightweight Adjustahorn

Lightweight control horn system,
Suitable for lightweight models and 0.8mm to 1.2mm wire pushrods
Colour may vary image for illustration only

Supplied in pairs

Each package contains:

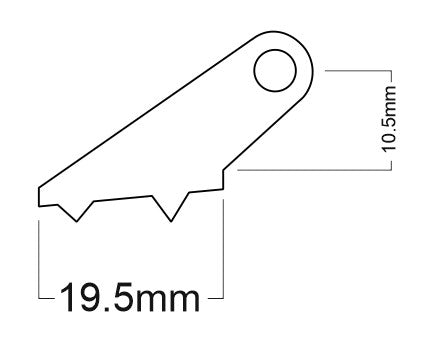

A pair of  3.8mm thick 3D printed control horns
Metal Rod keeper with grub screw
1.5mm Allen Key Required. (Not Included)

How to use

Cut off the 2mm threads from the linkage stopper and discard them.
Glue the 2 plastic control horns into the control surface.
N.B. the gap between the 2 control horns should match your pushrod wire

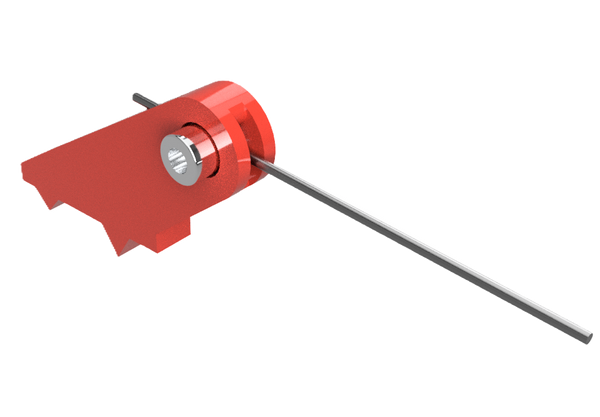

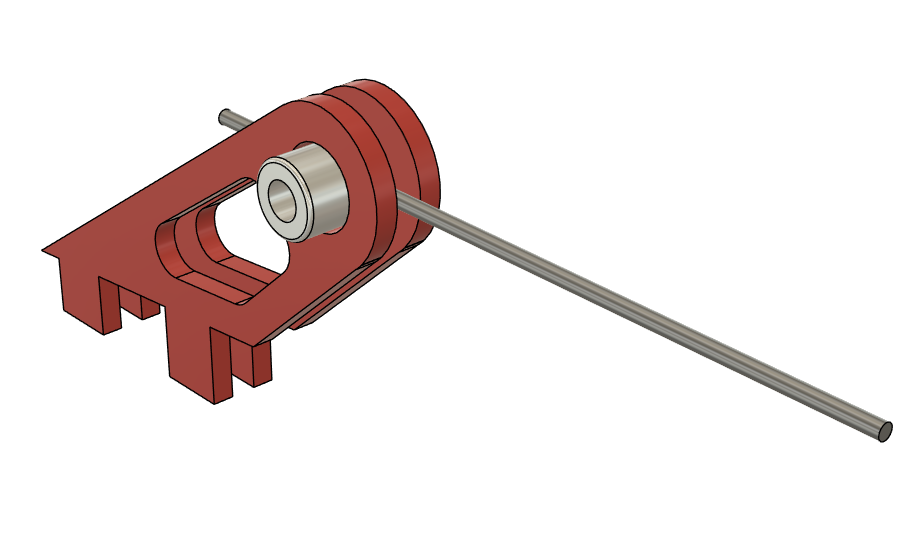

Slide the linkage stopper though the 2 control horns
Thread the pushrod wire through the linkage stopper
Secure the pushrod wire using a 1.5mm allen key.
(use thread lock on electric powered aircraft)
