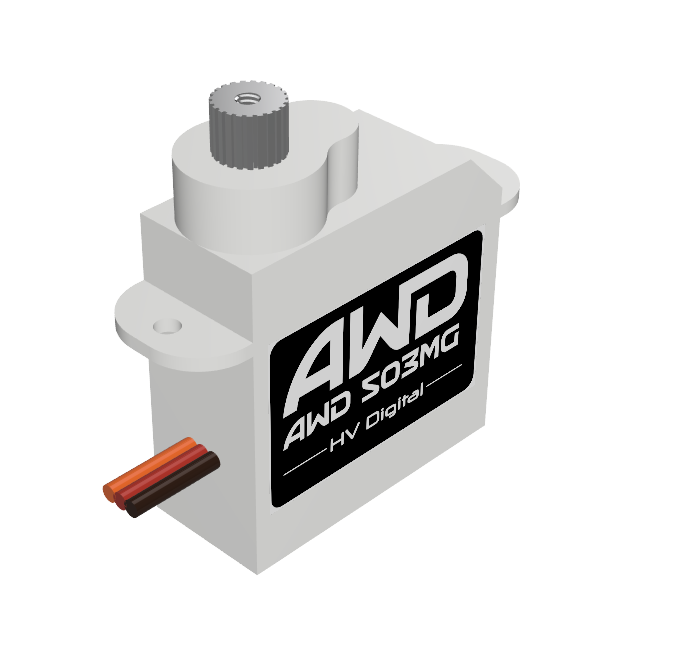

AWD503MG Servo

£6.50

Shipping calculated at checkout.

Shipping to the USA will require additonal Tarrifs to be paid prior to shipping. This product is manufactured in China and the current USA - China Tarrifs have to be paid separately prior to despatch. Please contact us for more details

5.3g Metal Geared servo suitable for a wide range of our aircraft kits

Weight with lead : 5.3g / ~0.20oz

Dimensions : 19.6 x 23.7 x 8.4 mm

Speed/Torque@ 4,8V : 0.11 sec/60° 0.77kg/cm

Speed/Torque@ 6V : 0.08 sec/60° 1.0kg/cm

Gears : Metal

Motor : Coreless

Operating Voltage : 4.8V - 6V

Lead Length: 200mm JR style 3 pin connector

Please note we have tested these servos down to 3.65v and currently running a small slope model on a 2s LIFE battery (6.6v) We do not recommend using a 2s lipo to power these servos
