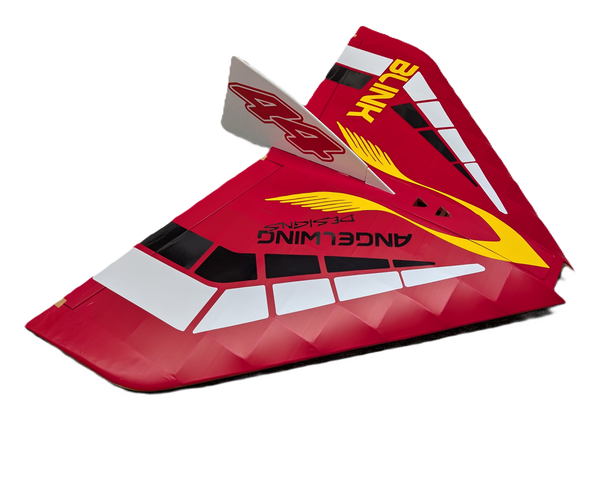

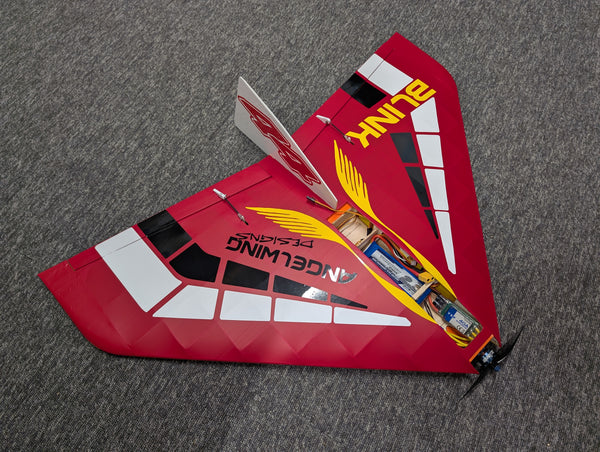

Blink V2

• All-Balsa and 3D printed Structure: Replaced warp-prone plywood ribs with premium 2.5mm balsa ribs and spars for a perfectly true build.
• Shaped Elevons: Upgraded from flat 3mm sheet wood to custom-profiled aerodynamic sections for precise control.
• 3D-Printed Components: Utilises high-quality 3D-printed parts in critical areas to ensure a fast, accurate, and simple assembly.
• Ultralight Wing Loading:

• Lightweight Sport Setup: Single 3S 650mAh pack for nimble, park-flying agility.
• Maximum Flight Time: Single 3S 2200mAh pack for extended duration (with a minor weight penalty).

Details

• 750mm Wingspan
• 380 - 500g flying weight
• Wing Area 23.36dm2 / 362sq"
• Wing Loading 16-21.4g dm2 / 5.4-7.1oz sqft

  RC Requirements


• 2205 to 2307 brushless motors (1850 to 2700kv)
• 5x5 Prop
• 40 to 60 amp Brushless esc
• 2 x 12g Metal Geared servos
• 4 channel Rx

  Keith Hasler Setup   AT2308 2600kv APC 5.25 x 6.25  3s 1800 40amp esc
  Andy Whitehead Setup iFlight Xing-E Pro 2306 2450kv Graupner 5x5 Cam Speed 4s 950 45amp esc

  Kit Contains

• Balsa Ribs and Main Spars
• Hardwood dowel Leading edges
• Balsa Elevon material
• Balsa Sheet Fin
• Plywood Hatch Formers
• 3d Printed removeable motor Mount
• 3d Printed Main Motor Bulkhead
• 3d Printed Magnetic Hatch retaining system
• 3d Printed grips for hand launching
• 1 pair of adjusta Horn Control Linkages
• Carbon tube reinforced music wire elevon pushrods
• Motor Retaining screws and Motor mount hardware

• Blink and AngelWingDesigns Decal

  Whilst the blink is not a difficult model to build it is not intended for new pilots.
  This is a RC Model Aircraft kit and is not a toy. Adult supervision will be required at all times.
