Dummy Cox glow engines

These High Quality FDM 3D printed Dummy cox engines are motor mounts to accept popular
small brushless motors whilst retaining the classic look of the Cox Glow engines.
These motor mounts have been carefully modelled against the real Cox Engines.
The motor Mounting holes retain the same fixing points as the Cox engines and in addition to that the Prop face is also as close as possible to the original (this will vary with motor choice)
The kit comes ready to assemble, using normal super glue.
Each of the 3 Motors sizes are supplied  in 2 colours, SIlver for the main tank and glow head  / crankcase and Black for the cylinder. If you wish to model an exact variant they can all take paint without any problems at all.
"Please Note Brushless motor not included"

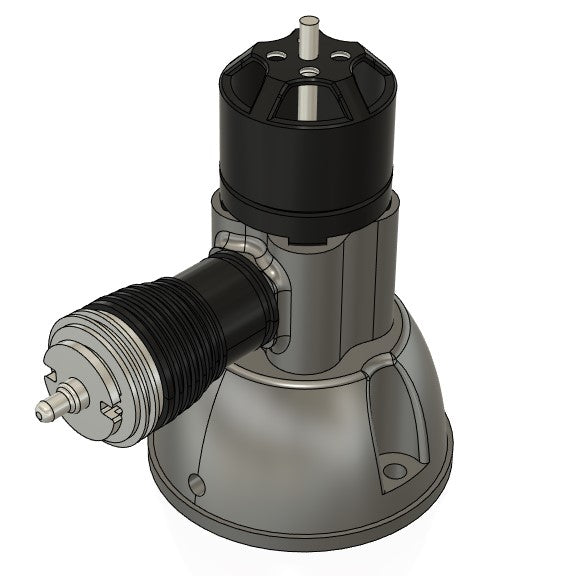

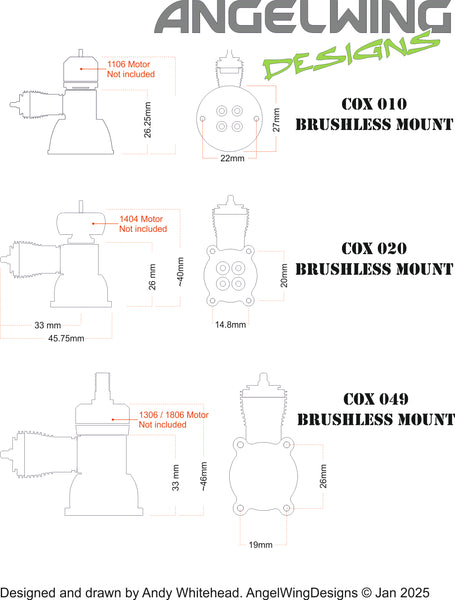

010 sized mount suits 1104 / 1106 or similar motors ( 3inch prop )

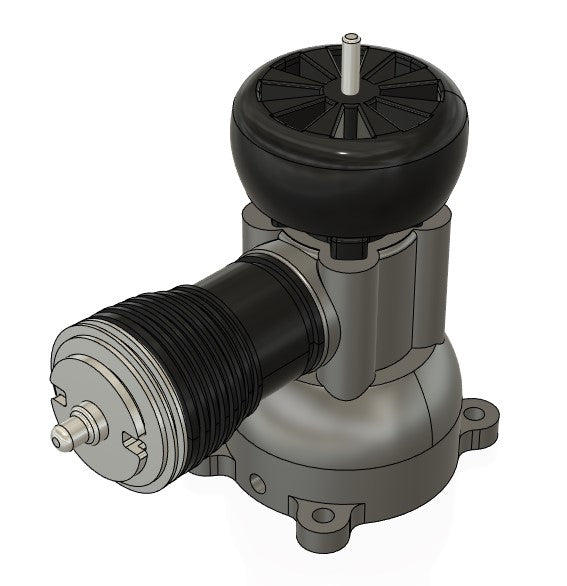

020 sized mount suits 1404 or similar motors (4 inch Prop)

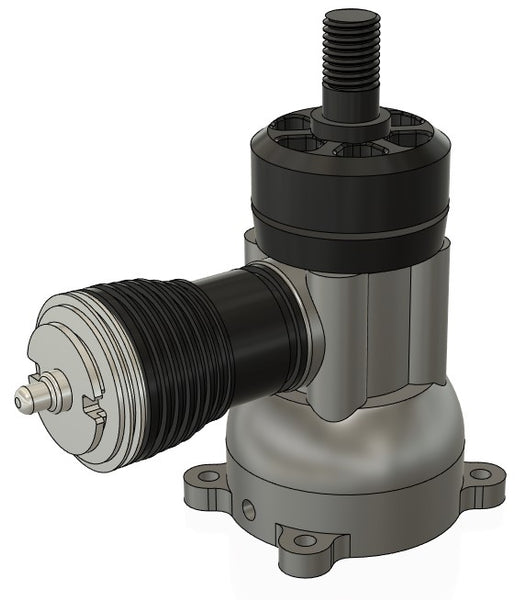

049 sized mount suits 1306 - 1806 or similar motors ( 5 or 6 inch prop )

A word about Fused Deposition Modeling (FDM) FDM printing allows small batch plastic parts to be manufactured, without the extremely high cost normally associated with injection moulding. As part of this process, it is quite normal for very fine layers to sometimes be visible. If a truly seamless finish is required, it is possible to carefully sand and refinish any parts.
