PTK7308
Manufactured in China
Looking for the perfect blend of performance, precision, and value?
The PTK 7308-MG-D delivers exactly that. Matching the dimensions of the popular KST X08 and offering very similar specs, this servo comes in at around half the price – making it a smart upgrade for any budget-conscious pilot.

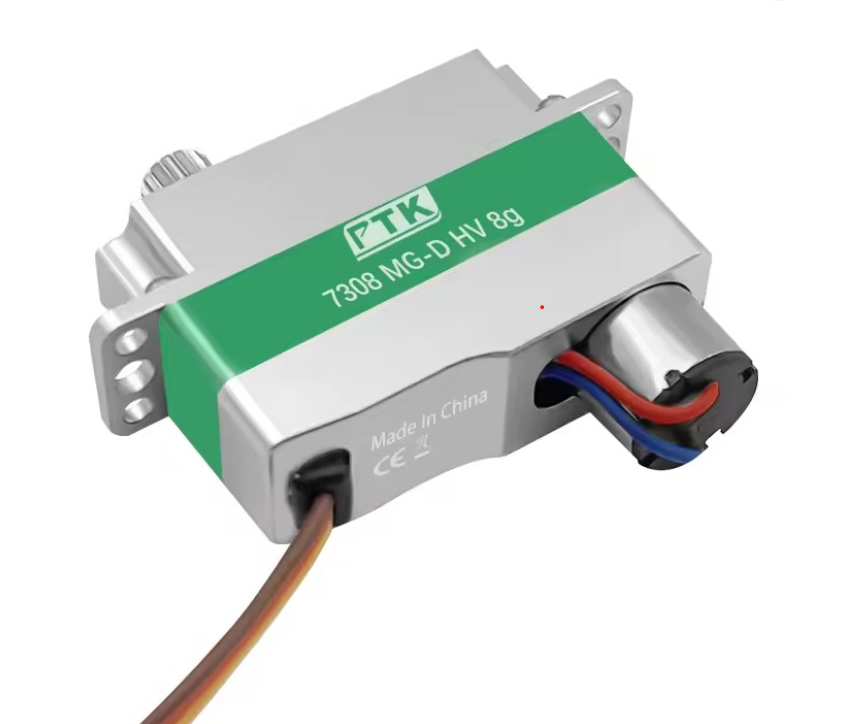

Inside, you’ll find a high-quality coreless motor, dual ball bearings, and robust stainless steel gears, all securely housed in a CNC-machined aluminium case. The result? Incredibly smooth operation with virtually zero free play – ideal for high-precision flight control.
One standout feature is its wide rotation range – up to 180° from a 500–2500 µs pulse width – giving you greater flexibility when designing control linkages and achieving optimal mechanical advantage.
The 15T-4 output spline ensures full compatibility with KST X06, KST X08, and CHA DS06 servo accessories

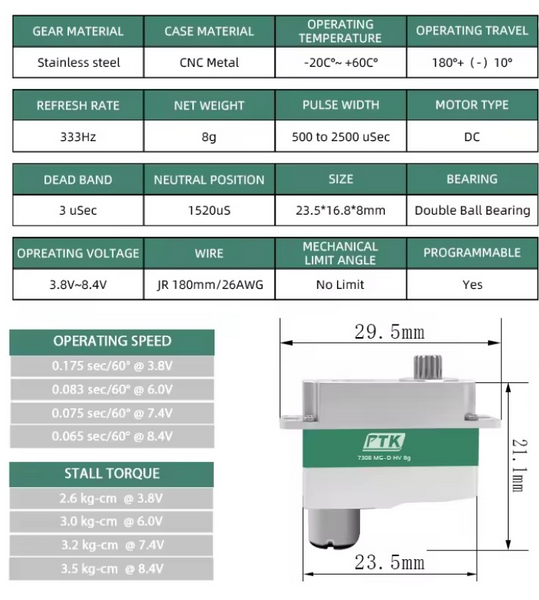

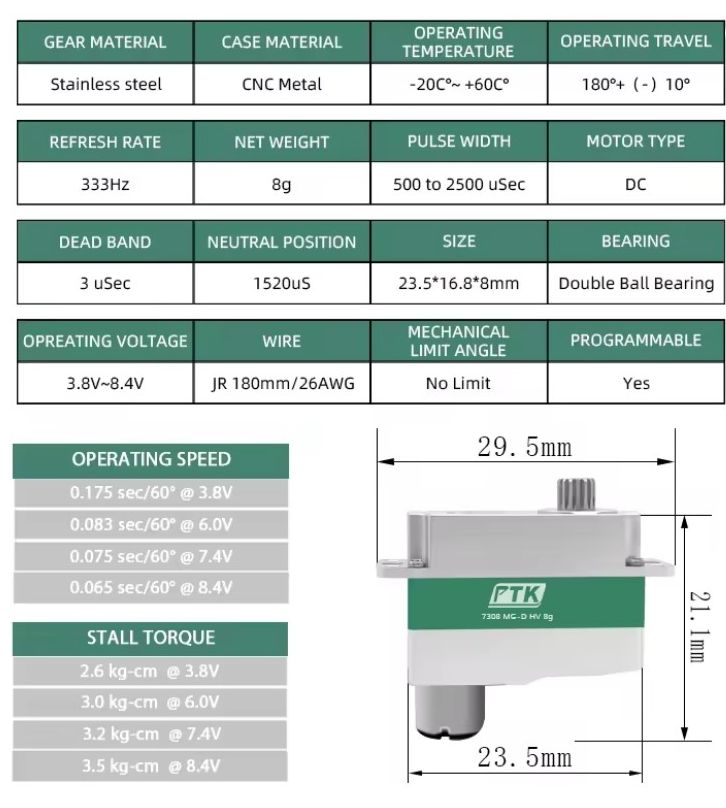

| PTK-7308-MG-D Servo Specifications | ||
|---|---|---|
| Body dimensions | 23.5 mm wide x 8.0 mm thick x 21.1 mm high | 0.93" wide x 0.31" thick x 0.83" high |
| Max dimensions | 29.5 mm wide x 8.0 mm thick x 27.0 mm high | 1.16" wide x 0.31" thick x 1.06" high |
| Stall torque (3.8V) | 2.6 Kg.cm | 36 oz.in |
| Stall torque (5V) | 3 Kg.cm | 42 oz.in |
| Stall torque (8.4V) | 3.5 Kg.cm | 49 oz.in |
| Weight | 9.2 g | 0.32 oz |
| Lead length | 17 cm | 6.7 in |
| Operating speed (3.8V) | 0.175 sec/60° | |
| Operating speed (5V) | 0.083 sec/60° | |
| Operating speed (8.4V) | 0.065 sec/60° | |
| Operating voltage | 3.8V to 8.4V | |
| Operating temperature | -20 to +60 °C | |
| Bearings | 2 ballraces | |
| Gear material | Stainless steel | |
| Case material | Aluminium | |
| Motor type | Coreless | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 3 µs | |
| Pulse width for ± 60º | µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Potentiometer | |

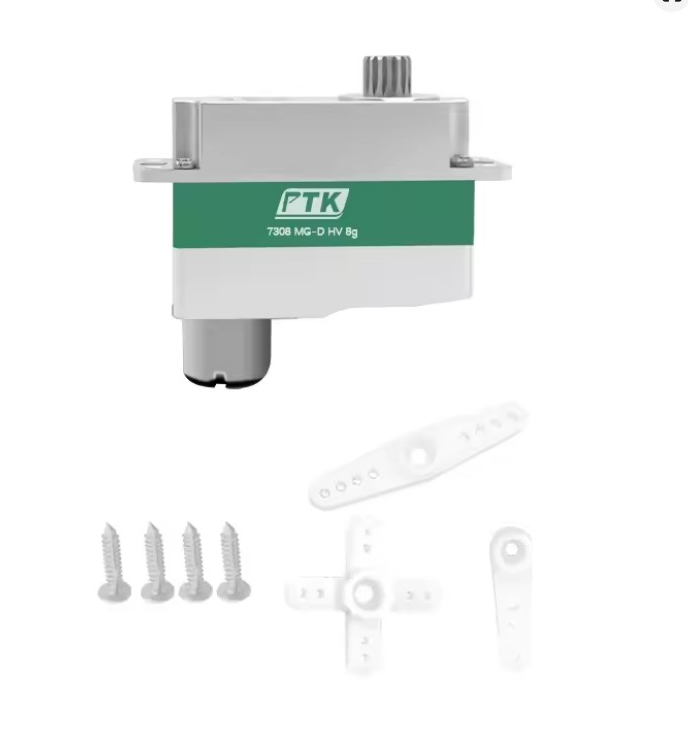

| Supplied accessories | 3 plastic output arms, 4 mounting screws, 1 arm retaining screw. | |
